See these messages on the mail-list.
See vusb-analyzer.sourceforge.net to analyse USB traffic with software only.

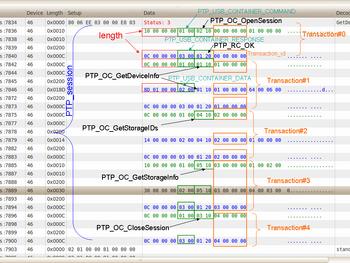

PTP traffic captured with vmware and analysed using vusb_analyzer. it would be perfect to have a PTP Decoder...
I used values names from libptp2 (ptp.h).
Source code[]
- USB properties:
- Camera: Canon EOS 7D
- 0xd402: "Canon EOS 7D" (UNKNOWN)
- 0xd407: 0x00000001 (1) (UNKNOWN)
- 0xd406: "Unknown Initiator" (UNKNOWN)
- 0xd303: 1 (UNKNOWN)
- USB operations
PtpNextPhase_NoData = 0; PtpNextPhase_ReadData = 1; PtpNextPhase_WriteData = 2; PtpOpe_UNDEFINED = 0x1000; PtpOpe_GET_DEVICEINFO = 0x1001; PtpOpe_OPEN_SESSION = 0x1002; PtpOpe_CLOSE_SESSION = 0x1003; PtpOpe_GET_STORAGEIDS = 0x1004; // == 0x9101 PtpOpe_GET_STORAGEINFO = 0x1005; // == 0x9102 PtpOpe_GET_NUMOBJECTS = 0x1006; PtpOpe_GET_OBJECTHANDLES = 0x1007; PtpOpe_GET_OBJECTINFO = 0x1008; // == 0x9103 PtpOpe_GET_OBJECT = 0x1009; // == 0x9104 PtpOpe_GET_THUMB = 0x100a; PtpOpe_DELETE_OBJECT = 0x100b; // == 0x9105 PtpOpe_SEND_OBJECTINFO = 0x100c; PtpOpe_SEND_OBJECT = 0x100d; 0x100f: FormatStore // == 0x9106 0x1014: GetDevicePropDesc 0x1015: GetDevicePropValue 0x1016: SetDevicePropValue PtpOpe_GET_PARTIALOBJECT = 0x101b; // == 0x9107 0x9052: UNKNOWN 0x9053: UNKNOWN 0x9057: UNKNOWN 0x9058: UNKNOWN 0x9059: UNKNOWN 0x905a: UNKNOWN 0x905f: UNKNOWN PtpOpe_DS_GET_STORAGEIDS = 0x9101; PtpOpe_DS_GET_STORAGEINFO = 0x9102; PtpOpe_DS_GET_OBJECTINFO = 0x9103; PtpOpe_DS_GET_OBJECT = 0x9104; PtpOpe_DS_DELETE_OBJECT = 0x9105; PtpOpe_DS_FORMAT_STORE = 0x9106; PtpOpe_DS_GET_PARTIALOBJECT = 0x9107; PtpOpe_DS_GET_DEVICEINFOEX = 0x9108; PtpOpe_DS_GET_OBJECTINFOEX = 0x9109; PtpOpe_DS_GET_THUMB_EX = 0x910a; PtpOpe_DS_SEND_PARTIAL_OBJECT = 0x910b; PtpOpe_DS_SET_OBJECTATRIBUTES = 0x910c; PtpOpe_DS_GET_OBJECTTIME = 0x910d; PtpOpe_DS_SET_OBJECTTIME = 0x910e; PtpOpe_DS_REMOTE_RELEASE = 0x910f; PtpOpe_DS_SET_DEVICEPROPVALUEEX = 0x9110; PtpOpe_DS_SEND_OBJECTEX = 0x9111; PtpOpe_DS_CREAGE_OBJECT = 0x9112; PtpOpe_DS_GET_REMOTEMODE = 0x9113; PtpOpe_DS_SET_REMOTEMODE = 0x9114; PtpOpe_DS_SET_EVENTMODE = 0x9115; PtpOpe_DS_GET_EVENT = 0x9116; PtpOpe_DS_TRANFERCOMPLETE = 0x9117; PtpOpe_DS_CANCELTRANSFER = 0x9118; PtpOpe_DS_RESETTRANSFER = 0x9119; PtpOpe_DS_PCHDDCAPACITY = 0x911a; PtpOpe_DS_SET_UILOCK = 0x911b; PtpOpe_DS_RESET_UILOCK = 0x911c; PtpOpe_DS_KEEPDEVICE_ON = 0x911d; PtpOpe_DS_SET_NULLPACKETMODE = 0x911e; PtpOpe_DS_UPDATE_FIRMWARE = 0x911f; DS_TRANFERCOMPLETE_DT = 0x9120; DS_CANCELTRANSFER_DT = 0x9121; DS_SETWFTPROFILE = 0x9122; ==ceresSetWftProfile() DS_GETWFTPROFILE = 0x9123; DS_SETPROFILETOWFT = 0x9124; DS_BULB_START = 0x9125; DS_BULB_END = 0x9126; DS_REQUESTDEVICEPROPVALUE = 0x9127; DS_REMOTERELEASEON = 0x9128; DS_REMOTERELEASEOFF = 0x9129; DS_REGISTBACKGROUNDIMAGE = 0x912a; DS_CHANGEPHOTOSTADIOMODE = 0x912b; DS_GETPARTIALOBJECTEX = 0x912c; 0x912d: UNKNOWN 0x912e: UNKNOWN 0x912f: UNKNOWN DS_RESETMIRRORLOCKUPSTATE = 0x9130; DS_POPUPBUILTINLFLASH = 0x9131; DS_ENDGETPARTIALOBJECTEX = 0x9132; DS_MOVIESELECTSWON = 0x9133; DS_MOVIESELECTSWOFF = 0x9134; DS_INITIATEVIEWFINDER = 0x9151; DS_TERMINATEVIEWFINDER = 0x9152; DS_GETVIEWFINDERDATA = 0x9153; DS_DOAF = 0x9154; DS_DRIVELENS = 0x9155; DS_DEPTHOFFIELDPREVIEW = 0x9156; DS_CLICKWB = 0x9157; DS_ZOOM = 0x9158; DS_ZOOM_POSITION = 0x9159; DS_SETLIVEAF_FRAME = 0x915a; DS_AFCANCEL = 0x9160; 0x91c0: ceresOpenFileValue 0x91c1: ceresCreateFileValue 0x91c2: ceresRemoveFileValue 0x91c3: ceresCloseFileValue 0x91c4: ceresGetWriteObject 0x91c5: ceresSendReadObject 0x91c6: ceresFileAttributesValue 0x91c7: ceresFileTimeValue 0x91c8: ceresSeekFileValue 0x91c9: ceresCreateDirectoryValue 0x91ca: ceresRemoveDirectoryValue 0x91cb: ceresSendFileInfo 0x91cc: ceresSendFileInfoListEx 0x91ce: ceresSendDriveInfo 0x91cf: ceresNotifyDriveStatus 0x91d0: ceresSplitFileValue 0x91d1: ceresRenameFileValue 0x91d2: ceresTruncateFileValue 0x91e1: UNKNOWN 0x91e2: UNKNOWN 0x91e3: ceresSendScanningResult 0x91e4: ceresSendHostInfo 0x91e5: UNKNOWN 0x91e6: UNKNOWN 0x91e7: UNKNOWN 0x91e8: ceresNotifyNetworkError 0x91e9: UNKNOWN 0x91ea: ceresRequestAdapterProperty 0x91eb: UNKNOWN 0x91ec: ceresSendWpsPinCode 0x91ed: ceresSendWizardInfo 0x91ee: UNKNOWN 0x91ef: ceresSendBtSearchResult 0x91f0: UNKNOWN 0x91f1: UNKNOWN 0x91f2: ceresGetUpdateFileData 0x91f3: UNKNOWN 0x91f4: UNKNOWN 0x91f7: ceresSendGpsInfo 0x91f5: ceresSendFactoryProperty 0x91f6: UNKNOWN 0x91f8: ceresSendBtPairingResult 0x91f9: ceresNotifyBtStatus PtpOpe_DS_FAPI_MESSAGETX = 0x91fe; PtpOpe_DS_FAPI_MESSAGERX = 0x91ff; property management ? 0x9801: UNKNOWN 0x9802: UNKNOWN 0x9803: UNKNOWN 0x9804: UNKNOWN 0x9805: UNKNOWN
